This article is a collection of small issues you might run into using three.js that seemed too small to have their own article.

Taking A Screenshot of the Canvas

In the browser there are effectively 2 functions that will take a screenshot. The old one canvas.toDataURL and the new better one canvas.toBlob

So you'd think it would be easy to take a screenshot by just adding some code like

<canvas id="c"></canvas>
+<button id="screenshot" type="button">Save...</button>
const elem = document.querySelector('#screenshot');
elem.addEventListener('click', () => {
  canvas.toBlob((blob) => {
    saveBlob(blob, `screencapture-${canvas.width}x${canvas.height}.png`);

const saveBlob = (function() {
  const a = document.createElement('a');
  document.body.appendChild(a); = 'none';
  return function saveData(blob, fileName) {
     const url = window.URL.createObjectURL(blob);
     a.href = url; = fileName;;

Here's the example from the article on responsiveness with the code above added and some CSS to place the button

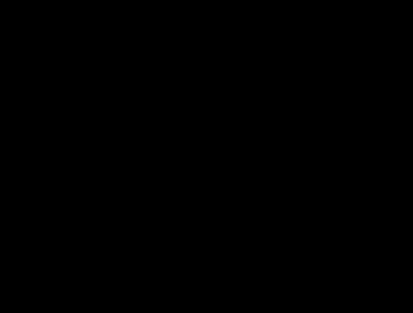

When I tried it I got this screenshot

Yes, it's just a black image.

It's possible it worked for you depending on your browser/OS but in general it's not likely to work.

The issue is that for performance and compatibility reasons, by default the browser will clear a WebGL canvas's drawing buffer after you've drawn to it.

The solution is to call your rendering code just before capturing.

In our code we need to adjust a few things. First let's separate out the rendering code.

+const state = {
+  time: 0,

-function render(time) {
-  time *= 0.001;
+function render() {
  if (resizeRendererToDisplaySize(renderer)) {
    const canvas = renderer.domElement;
    camera.aspect = canvas.clientWidth / canvas.clientHeight;

  cubes.forEach((cube, ndx) => {
    const speed = 1 + ndx * .1;
-    const rot = time * speed;
+    const rot = state.time * speed;
    cube.rotation.x = rot;
    cube.rotation.y = rot;

  renderer.render(scene, camera);

-  requestAnimationFrame(render);

+function animate(time) {
+  state.time = time * 0.001;
+  render();
+  requestAnimationFrame(animate);

Now that render is only concerned with actually rendering we can call it just before capturing the canvas.

const elem = document.querySelector('#screenshot');
elem.addEventListener('click', () => {
+  render();
  canvas.toBlob((blob) => {
    saveBlob(blob, `screencapture-${canvas.width}x${canvas.height}.png`);

And now it should work.

For a different solution see the next item.

Preventing the canvas being cleared

Let's say you wanted to let the user paint with an animated object. You need to pass in preserveDrawingBuffer: true when you create the WebGLRenderer. This prevents the browser from clearing the canvas. You also need to tell three.js not to clear the canvas as well.

const canvas = document.querySelector('#c');
-const renderer = new THREE.WebGLRenderer({canvas});
+const renderer = new THREE.WebGLRenderer({
+  canvas,
+  preserveDrawingBuffer: true,
+  alpha: true,
+renderer.autoClearColor = false;

Note that if you were serious about making a drawing program this would not be a solution as the browser will still clear the canvas anytime we change its resolution. We're changing is resolution based on its display size. Its display size changes when the window changes size. That includes when the user downloads a file, even in another tab, and the browser adds a status bar. It also includes when the user turns their phone and the browser switches from portrait to landscape.

If you really wanted to make a drawing program you'd render to a texture using a render target.

Getting Keyboard Input

Throughout these tutorials we've often attached event listeners to the canvas. While many events work, one that does not work by default is keyboard events.

To get keyboard events, set the tabindex of the canvas to 0 or more. Eg.

<canvas tabindex="0"></canvas>

This ends up causing a new issue though. Anything that has a tabindex set will get highlighted when it has the focus. To fix that set its focus CSS outline to none

canvas:focus {

To demonstrate here are 3 canvases

<canvas id="c1"></canvas>
<canvas id="c2" tabindex="0"></canvas>
<canvas id="c3" tabindex="1"></canvas>

and some css just for the last canvas

#c3:focus {
    outline: none;

Let's attach the same event listeners to all of them

document.querySelectorAll('canvas').forEach((canvas) => {
  const ctx = canvas.getContext('2d');

  function draw(str) {
    ctx.clearRect(0, 0, canvas.width, canvas.height);
    ctx.textAlign = 'center';
    ctx.textBaseline = 'middle';
    ctx.fillText(str, canvas.width / 2, canvas.height / 2);

  canvas.addEventListener('focus', () => {
    draw('has focus press a key');

  canvas.addEventListener('blur', () => {
    draw('lost focus');

  canvas.addEventListener('keydown', (e) => {
    draw(`keyCode: ${e.keyCode}`);

Notice you can't get the first canvas to accept keyboard input. The second canvas you can but it gets highlighted. The 3rd canvas has both solutions applied.

Making the Canvas Transparent

By default THREE.js makes the canvas opaque. If you want the canvas to be transparent pass in alpha:true when you create the WebGLRenderer

const canvas = document.querySelector('#c');
-const renderer = new THREE.WebGLRenderer({canvas});
+const renderer = new THREE.WebGLRenderer({
+  canvas,
+  alpha: true,

You probably also want to tell it that your results are not using premultiplied alpha

const canvas = document.querySelector('#c');
const renderer = new THREE.WebGLRenderer({
  alpha: true,
+  premultipliedAlpha: false,

Three.js defaults to the canvas using premultipliedAlpha: true but defaults to materials outputting premultipliedAlpha: false.

If you'd like a better understanding of when and when not to use premultiplied alpha here's a good article on it.

In any case let's setup a simple example with a transparent canvas.

We applied the settings above to the example from the article on responsiveness. Let's also make the materials more transparent.

function makeInstance(geometry, color, x) {
-  const material = new THREE.MeshPhongMaterial({color});
+  const material = new THREE.MeshPhongMaterial({
+    color,
+    opacity: 0.5,
+  });


And let's add some HTML content

  <canvas id="c"></canvas>
+  <div id="content">
+    <div>
+      <h1>Cubes-R-Us!</h1>
+      <p>We make the best cubes!</p>
+    </div>
+  </div>

as well as some CSS to put the canvas in front

body {
    margin: 0;
#c {
    width: 100%;
    height: 100%;
    display: block;
+    position: fixed;
+    left: 0;
+    top: 0;
+    z-index: 2;
+    pointer-events: none;
+#content {
+  font-size: 7vw;
+  font-family: sans-serif;
+  text-align: center;
+  width: 100%;
+  height: 100%;
+  display: flex;
+  justify-content: center;
+  align-items: center;

note that pointer-events: none makes the canvas invisible to the mouse and touch events so you can select the text beneath.

Making your background a three.js animation

A common question is how to make a three.js animation be the background of a webpage.

There are 2 obvious ways.

  • Set the canvas CSS position to fixed as in
#c {
 position: fixed;
 left: 0;
 top: 0;

You can basically see this exact solution on the previous example. Just set z-index to -1 and the cubes will appear behind the text.

A small disadvantage to this solution is your JavaScript must integrate with the page and if you have a complex page then you need to make sure none of the JavaScript in your three.js visualization conflict with the JavaScript doing other things in the page.

  • Use an iframe

This is the solution used on the front page of this site.

In your webpage just insert an iframe, for example

<iframe id="background" src="responsive.html">
  Your content goes here.

Then style the iframe to fill the window and be in the background which is basically the same code as we used above for the canvas except we also need to set border to none since iframes have a border by default.

#background {
    position: fixed;
    width: 100%;
    height: 100%;
    left: 0;
    top: 0;
    z-index: -1;
    border: none;
    pointer-events: none;
