Loading a .GLTF File

In a previous lesson we loaded an .OBJ file. If you haven't read it you might want to check it out first.

As pointed out over there the .OBJ file format is very old and fairly simple. It provides no scene graph so everything loaded is one large mesh. It was designed mostly as a simple way to pass data between 3D editors.

The gLTF format is actually a format designed from the ground up for be used for displaying graphics. 3D formats can be divided into 3 or 4 basic types.

  • 3D Editor Formats

    This are formats specific to a single app. .blend (Blender), .max (3d Studio Max), .mb and .ma (Maya), etc...

  • Exchange formats

    These are formats like .OBJ, .DAE (Collada), .FBX. They are designed to help exchange information between 3D editors. As such they are usually much larger than needed with extra info used only inside 3d editors

  • App formats

    These are usually specific to certain apps, usually games.

  • Transmission formats

    gLTF might be the first true transmission format. I suppose VRML might be considered one but VRML was actually a pretty poor format.

    gLTF is designed to do some things well that all those other formats don't do

    1. Be small for transmission

      For example this means much of their large data, like vertices, is stored in binary. When you download a .gLTF file that data can be uploaded to the GPU with zero processing. It's ready as is. This is in contrast to say VRML, .OBJ, or .DAE where vertices are stored as text and have to be parsed. Text vertex positions can easily be 3x to 5x larger than binary.

    2. Be ready to render

      This again is different from other formats except maybe App formats. The data in a glTF file is mean to be rendered, not edited. Data that's not important to rendering has generally been removed. Polygons have been converted to triangles. Materials have known values that are supposed to work everywhere.

gLTF was specifically designed so you should be able to download a glTF file and display it with a minimum of trouble. Let's cross our fingers that's truly the case as none of the other formats have been able to do this.

I wasn't really sure what I should show. At some level loading and displaying a gLTF file is simpler than an .OBJ file. Unlike a .OBJ file materials are directly part of the format. That said I thought I should at least load one up and I think going over the issues I ran into might provide some good info.

Searching the net I found this low-poly city by antonmoek which seemed like if we're lucky might make a good example.

Starting with an example from the .OBJ article I removed the code for loading .OBJ and replaced it with code for loading .GLTF

The old .OBJ code was

const mtlLoader = new MTLLoader();
mtlLoader.loadMtl('resources/models/windmill/windmill-fixed.mtl', (mtl) => {
  mtl.preload();
  mtl.materials.Material.side = THREE.DoubleSide;
  objLoader.setMaterials(mtl);
  objLoader.load('resources/models/windmill/windmill.obj', (event) => {
    const root = event.detail.loaderRootNode;
    scene.add(root);
    ...
  });
});

The new .GLTF code is

{
  const gltfLoader = new GLTFLoader();
  const url = 'resources/models/cartoon_lowpoly_small_city_free_pack/scene.gltf';
  gltfLoader.load(url, (gltf) => {
    const root = gltf.scene;
    scene.add(root);
    ...
  });

I kept the auto framing code as before

We also need to include the GLTFLoader and we can get rid of the OBJLoader.

-import {LoaderSupport} from '/examples/jsm/loaders/LoaderSupport.js';
-import {OBJLoader} from '/examples/jsm/loaders/OBJLoader.js';
-import {MTLLoader} from '/examples/jsm/loaders/MTLLoader.js';
+import {GLTFLoader} from '/examples/jsm/loaders/GLTFLoader.js';

And running that we get

Magic! It just works, textures and all.

Next I wanted to see if I could animate the cars driving around so I needed to check if the scene had the cars as separate entities and if they were setup in a way I could use them.

I wrote some code to dump put the scenegraph to the JavaScript console.

Here's the code to print out the scenegraph.

function dumpObject(obj, lines = [], isLast = true, prefix = '') {
  const localPrefix = isLast ? '└─' : '├─';
  lines.push(`${prefix}${prefix ? localPrefix : ''}${obj.name || '*no-name*'} [${obj.type}]`);
  const newPrefix = prefix + (isLast ? '  ' : '│ ');
  const lastNdx = obj.children.length - 1;
  obj.children.forEach((child, ndx) => {
    const isLast = ndx === lastNdx;
    dumpObject(child, lines, isLast, newPrefix);
  });
  return lines;
}

And I just called it right after loading the scene.

const gltfLoader = new GLTFLoader();
gltfLoader.load('resources/models/cartoon_lowpoly_small_city_free_pack/scene.gltf', (gltf) => {
  const root = gltf.scene;
  scene.add(root);
  console.log(dumpObject(root).join('\n'));

Running that I got this listing

OSG_Scene [Scene]
  └─RootNode_(gltf_orientation_matrix) [Object3D]
    └─RootNode_(model_correction_matrix) [Object3D]
      └─4d4100bcb1c640e69699a87140df79d7fbx [Object3D]
        └─RootNode [Object3D]
          │ ...
          ├─Cars [Object3D]
          │ ├─CAR_03_1 [Object3D]
          │ │ └─CAR_03_1_World_ap_0 [Mesh]
          │ ├─CAR_03 [Object3D]
          │ │ └─CAR_03_World_ap_0 [Mesh]
          │ ├─Car_04 [Object3D]
          │ │ └─Car_04_World_ap_0 [Mesh]
          │ ├─CAR_03_2 [Object3D]
          │ │ └─CAR_03_2_World_ap_0 [Mesh]
          │ ├─Car_04_1 [Object3D]
          │ │ └─Car_04_1_World_ap_0 [Mesh]
          │ ├─Car_04_2 [Object3D]
          │ │ └─Car_04_2_World_ap_0 [Mesh]
          │ ├─Car_04_3 [Object3D]
          │ │ └─Car_04_3_World_ap_0 [Mesh]
          │ ├─Car_04_4 [Object3D]
          │ │ └─Car_04_4_World_ap_0 [Mesh]
          │ ├─Car_08_4 [Object3D]
          │ │ └─Car_08_4_World_ap8_0 [Mesh]
          │ ├─Car_08_3 [Object3D]
          │ │ └─Car_08_3_World_ap9_0 [Mesh]
          │ ├─Car_04_1_2 [Object3D]
          │ │ └─Car_04_1_2_World_ap_0 [Mesh]
          │ ├─Car_08_2 [Object3D]
          │ │ └─Car_08_2_World_ap11_0 [Mesh]
          │ ├─CAR_03_1_2 [Object3D]
          │ │ └─CAR_03_1_2_World_ap_0 [Mesh]
          │ ├─CAR_03_2_2 [Object3D]
          │ │ └─CAR_03_2_2_World_ap_0 [Mesh]
          │ ├─Car_04_2_2 [Object3D]
          │ │ └─Car_04_2_2_World_ap_0 [Mesh]
          ...

From that we can see all the cars happen to be under a parent called "Cars"

*          ├─Cars [Object3D]
          │ ├─CAR_03_1 [Object3D]
          │ │ └─CAR_03_1_World_ap_0 [Mesh]
          │ ├─CAR_03 [Object3D]
          │ │ └─CAR_03_World_ap_0 [Mesh]
          │ ├─Car_04 [Object3D]
          │ │ └─Car_04_World_ap_0 [Mesh]

So as a simple test I thought I would just try rotating all the children of the "Cars" node around their Y axis.

I looked up the "Cars" node after loading the scene and saved the result.

+let cars;
{
  const gltfLoader = new GLTFLoader();
  gltfLoader.load('resources/models/cartoon_lowpoly_small_city_free_pack/scene.gltf', (gltf) => {
    const root = gltf.scene;
    scene.add(root);
+    cars = root.getObjectByName('Cars');

Then in the render function we can just set the rotation of each child of cars.

+function render(time) {
+  time *= 0.001;  // convert to seconds

  if (resizeRendererToDisplaySize(renderer)) {
    const canvas = renderer.domElement;
    camera.aspect = canvas.clientWidth / canvas.clientHeight;
    camera.updateProjectionMatrix();
  }

+  if (cars) {
+    for (const car of cars.children) {
+      car.rotation.y = time;
+    }
+  }

  renderer.render(scene, camera);

  requestAnimationFrame(render);
}

And we get

Hmmm, it looks like unfortunately this scene wasn't designed to animate the cars as their origins are not setup for that purpose. The trucks are rotating in the wrong direction.

This brings up an important point which is if you're going to do something in 3D you need to plan ahead and design your assets so they have their origins in the correct places, so they are the correct scale, etc.

Since I'm not an artist and I don't know blender that well I will hack this example. We'll take each car and parent it to another Object3D. We will then move those Object3D objects to move the cars but separately we can set the car's original Object3D to re-orient it so it's about where we really need it.

Looking back at the scene graph listing it looks like there are really only 3 types of cars, "Car_08", "CAR_03", and "Car_04". Hopefully each type of car will work with the same adjustments.

I wrote this code to go through each car, parent it to a new Object3D, parent that new Object3D to the scene, and apply some per car type settings to fix its orientation, and add the new Object3D a cars array.

-let cars;
+const cars = [];
{
  const gltfLoader = new GLTFLoader();
  gltfLoader.load('resources/models/cartoon_lowpoly_small_city_free_pack/scene.gltf', (gltf) => {
    const root = gltf.scene;
    scene.add(root);

-    cars = root.getObjectByName('Cars');
+    const loadedCars = root.getObjectByName('Cars');
+    const fixes = [
+      { prefix: 'Car_08', rot: [Math.PI * .5, 0, Math.PI +* .5], },
+      { prefix: 'CAR_03', rot: [0, Math.PI, 0], },
+      { prefix: 'Car_04', rot: [0, Math.PI, 0], },
+    ];
+
+    root.updateMatrixWorld();
+    for (const car of loadedCars.children.slice()) {
+      const fix = fixes.find(fix => car.name.startsWith(fix.prefix));
+      const obj = new THREE.Object3D();
+      car.getWorldPosition(obj.position);
+      car.position.set(0, 0, 0);
+      car.rotation.set(...fix.rot);
+      obj.add(car);
+      scene.add(obj);
+      cars.push(obj);
+    }
     ...

This fixes the orientation of the cars.

Now let's drive them around.

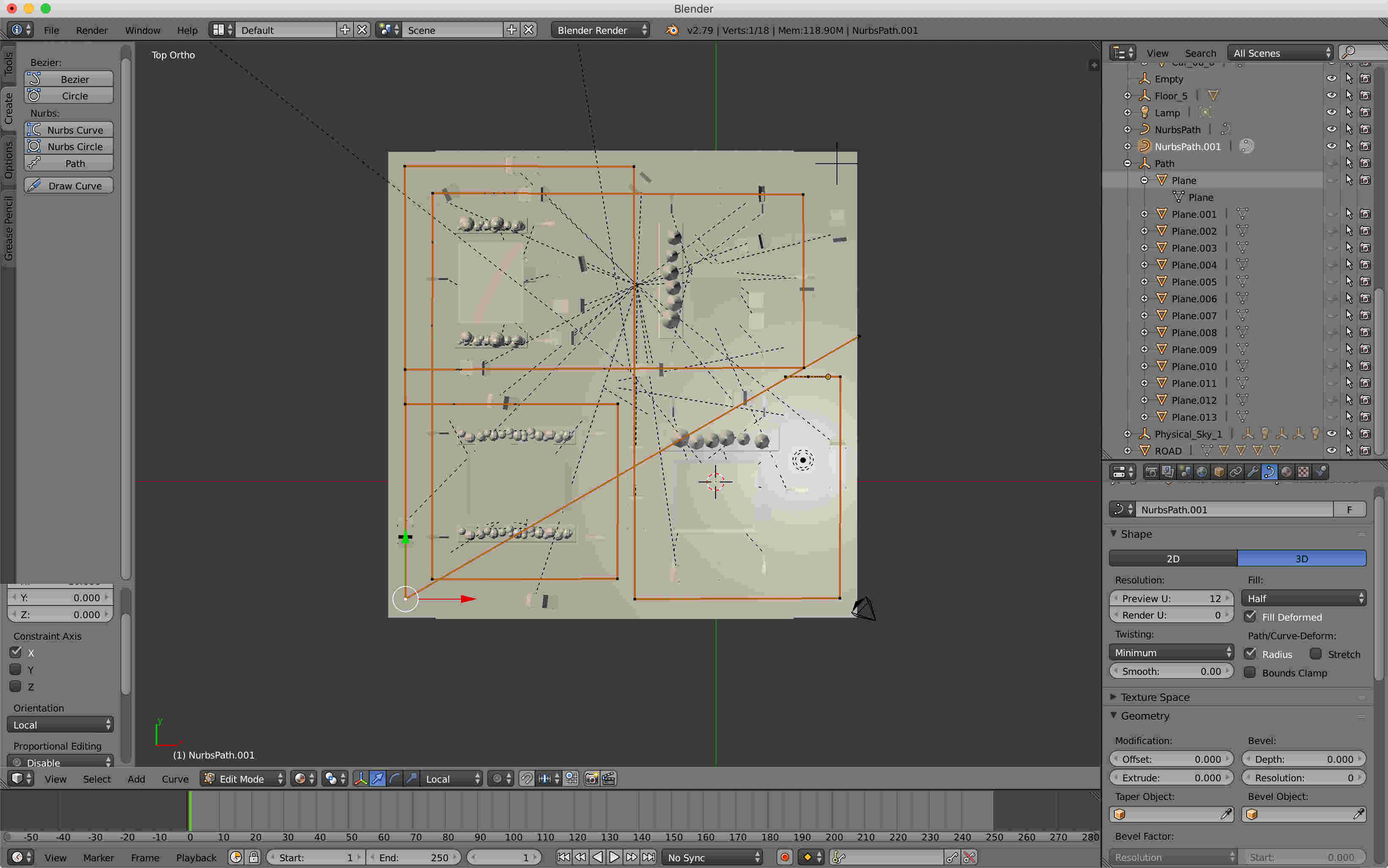

Making even a simple driving system is too much for this post but it seems instead we could just make one convoluted path that drives down all the roads and then put the cars on the path. Here's a picture from Blender about half way through building the path.

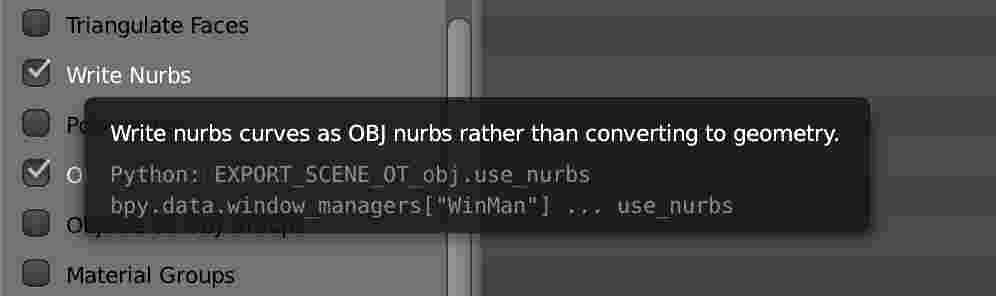

I needed a way to get the data for that path out of Blender. Fortunately I was able to select just my path and export .OBJ checking "write nurbs".

Opening the .OBJ file I was able to get a list of points which I formatted into this

const controlPoints = [
  [1.118281, 5.115846, -3.681386],
  [3.948875, 5.115846, -3.641834],
  [3.960072, 5.115846, -0.240352],
  [3.985447, 5.115846, 4.585005],
  [-3.793631, 5.115846, 4.585006],
  [-3.826839, 5.115846, -14.736200],
  [-14.542292, 5.115846, -14.765865],
  [-14.520929, 5.115846, -3.627002],
  [-5.452815, 5.115846, -3.634418],
  [-5.467251, 5.115846, 4.549161],
  [-13.266233, 5.115846, 4.567083],
  [-13.250067, 5.115846, -13.499271],
  [4.081842, 5.115846, -13.435463],
  [4.125436, 5.115846, -5.334928],
  [-14.521364, 5.115846, -5.239871],
  [-14.510466, 5.115846, 5.486727],
  [5.745666, 5.115846, 5.510492],
  [5.787942, 5.115846, -14.728308],
  [-5.423720, 5.115846, -14.761919],
  [-5.373599, 5.115846, -3.704133],
  [1.004861, 5.115846, -3.641834],
];

THREE.js has some curve classes. The CatmullRomCurve3 seemed like it might work. The thing about that kind of curve is it tries to make a smooth curve going through the points.

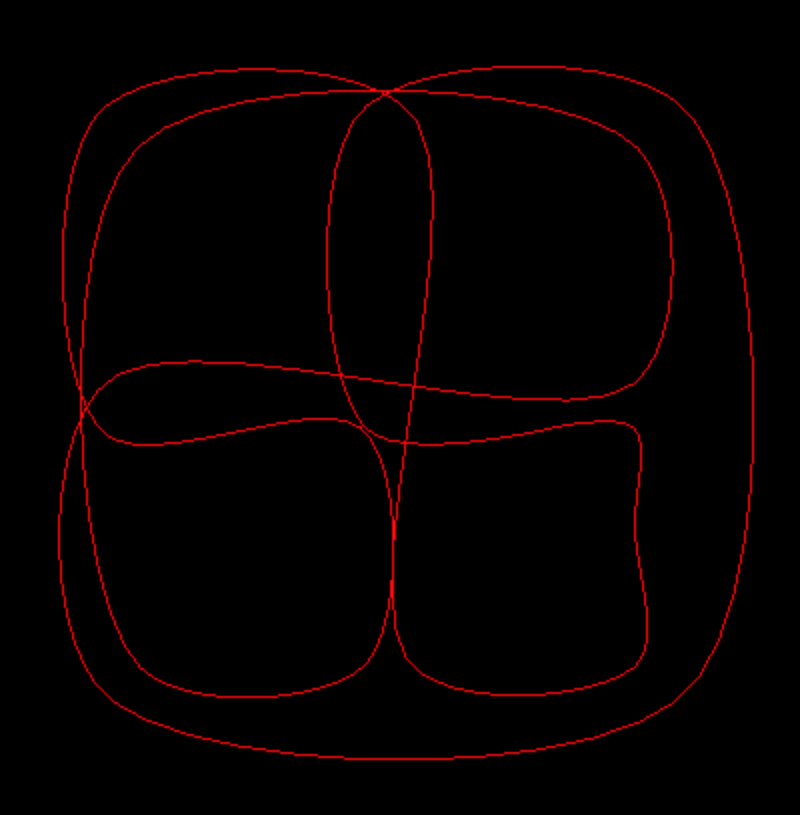

In fact putting those points in directly will generate a curve like this

but we want a sharper corners. It seemed like if we computed some extra points we could get what we want. For each pair of points we'll compute a point 10% of the way between the 2 points and another 90% of the way between the 2 points and pass the result to CatmullRomCurve3.

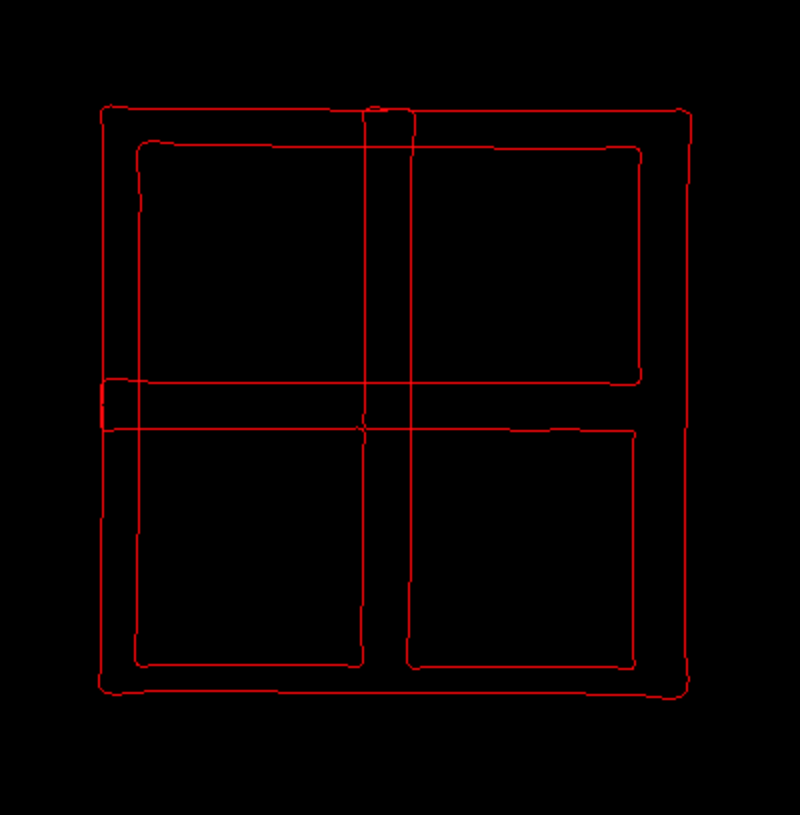

This will give us a curve like this

Here's the code to make the curve

let curve;
let curveObject;
{
  const controlPoints = [
    [1.118281, 5.115846, -3.681386],
    [3.948875, 5.115846, -3.641834],
    [3.960072, 5.115846, -0.240352],
    [3.985447, 5.115846, 4.585005],
    [-3.793631, 5.115846, 4.585006],
    [-3.826839, 5.115846, -14.736200],
    [-14.542292, 5.115846, -14.765865],
    [-14.520929, 5.115846, -3.627002],
    [-5.452815, 5.115846, -3.634418],
    [-5.467251, 5.115846, 4.549161],
    [-13.266233, 5.115846, 4.567083],
    [-13.250067, 5.115846, -13.499271],
    [4.081842, 5.115846, -13.435463],
    [4.125436, 5.115846, -5.334928],
    [-14.521364, 5.115846, -5.239871],
    [-14.510466, 5.115846, 5.486727],
    [5.745666, 5.115846, 5.510492],
    [5.787942, 5.115846, -14.728308],
    [-5.423720, 5.115846, -14.761919],
    [-5.373599, 5.115846, -3.704133],
    [1.004861, 5.115846, -3.641834],
  ];
  const p0 = new THREE.Vector3();
  const p1 = new THREE.Vector3();
  curve = new THREE.CatmullRomCurve3(
    controlPoints.map((p, ndx) => {
      p0.set(...p);
      p1.set(...controlPoints[(ndx + 1) % controlPoints.length]);
      return [
        (new THREE.Vector3()).copy(p0),
        (new THREE.Vector3()).lerpVectors(p0, p1, 0.1),
        (new THREE.Vector3()).lerpVectors(p0, p1, 0.9),
      ];
    }).flat(),
    true,
  );
  {
    const points = curve.getPoints(250);
    const geometry = new THREE.BufferGeometry().setFromPoints(points);
    const material = new THREE.LineBasicMaterial({color: 0xff0000});
    curveObject = new THREE.Line(geometry, material);
    scene.add(curveObject);
  }
}

The first part of that code makes a curve. The second part of that code generates 250 points from the curve and then creates an object to display the lines made by connecting those 250 points.

Running the example I didn't see the curve. To make it visible I made it ignore the depth test and render last

    curveObject = new THREE.Line(geometry, material);
+    material.depthTest = false;
+    curveObject.renderOrder = 1;

And that's when I discovered it was way too small.

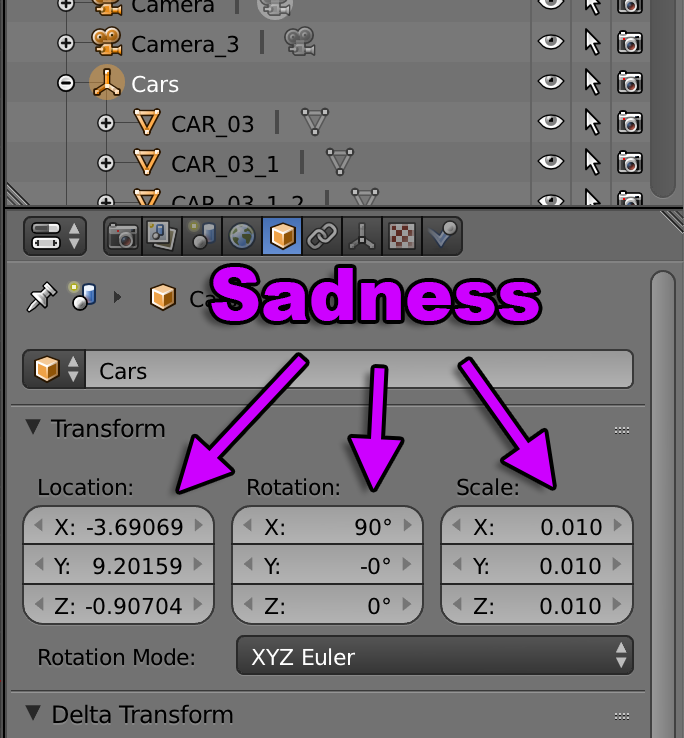

Checking the hierarchy in Blender I found out that the artist had scaled the node all the cars are parented to.

Scaling is bad for real time 3D apps. It causes all kinds of issues and ends up being no end of frustration when doing real time 3D. Artists often don't know this because it's so easy to scale an entire scene in a 3D editing program but if you decide to make a real time 3D app I suggest you request your artists to never scale anything. If they change the scale they should find a way to apply that scale to the vertices so that when it ends up making it to your app you can ignore scale.

And, not just scale, in this case the cars are rotated and offset by their parent, the Cars node. This will make it hard at runtime to move the cars around in world space. To be clear, in this case we want cars to drive around in world space which is why these issues are coming up. If something that is meant to be manipulated in a local space, like the moon revolving around the earth this is less of an issue.

Going back to the function we wrote above to dump the scene graph, let's dump the position, rotation, and scale of each node.

+function dumpVec3(v3, precision = 3) {
+  return `${v3.x.toFixed(precision)}, ${v3.y.toFixed(precision)}, ${v3.z.toFixed(precision)}`;
+}

function dumpObject(obj, lines, isLast = true, prefix = '') {
  const localPrefix = isLast ? '└─' : '├─';
  lines.push(`${prefix}${prefix ? localPrefix : ''}${obj.name || '*no-name*'} [${obj.type}]`);
+  const dataPrefix = obj.children.length
+     ? (isLast ? '  │ ' : '│ │ ')
+     : (isLast ? '    ' : '│   ');
+  lines.push(`${prefix}${dataPrefix}  pos: ${dumpVec3(obj.position)}`);
+  lines.push(`${prefix}${dataPrefix}  rot: ${dumpVec3(obj.rotation)}`);
+  lines.push(`${prefix}${dataPrefix}  scl: ${dumpVec3(obj.scale)}`);
  const newPrefix = prefix + (isLast ? '  ' : '│ ');
  const lastNdx = obj.children.length - 1;
  obj.children.forEach((child, ndx) => {
    const isLast = ndx === lastNdx;
    dumpObject(child, lines, isLast, newPrefix);
  });
  return lines;
}

And the result from running it

OSG_Scene [Scene]
  │   pos: 0.000, 0.000, 0.000
  │   rot: 0.000, 0.000, 0.000
  │   scl: 1.000, 1.000, 1.000
  └─RootNode_(gltf_orientation_matrix) [Object3D]
    │   pos: 0.000, 0.000, 0.000
    │   rot: -1.571, 0.000, 0.000
    │   scl: 1.000, 1.000, 1.000
    └─RootNode_(model_correction_matrix) [Object3D]
      │   pos: 0.000, 0.000, 0.000
      │   rot: 0.000, 0.000, 0.000
      │   scl: 1.000, 1.000, 1.000
      └─4d4100bcb1c640e69699a87140df79d7fbx [Object3D]
        │   pos: 0.000, 0.000, 0.000
        │   rot: 1.571, 0.000, 0.000
        │   scl: 1.000, 1.000, 1.000
        └─RootNode [Object3D]
          │   pos: 0.000, 0.000, 0.000
          │   rot: 0.000, 0.000, 0.000
          │   scl: 1.000, 1.000, 1.000
          ├─Cars [Object3D]
*          │ │   pos: -369.069, -90.704, -920.159
*          │ │   rot: 0.000, 0.000, 0.000
*          │ │   scl: 1.000, 1.000, 1.000
          │ ├─CAR_03_1 [Object3D]
          │ │ │   pos: 22.131, 14.663, -475.071
          │ │ │   rot: -3.142, 0.732, 3.142
          │ │ │   scl: 1.500, 1.500, 1.500
          │ │ └─CAR_03_1_World_ap_0 [Mesh]
          │ │       pos: 0.000, 0.000, 0.000
          │ │       rot: 0.000, 0.000, 0.000
          │ │       scl: 1.000, 1.000, 1.000

This shows us that Cars in the original scene has had its rotation and scale removed and applied to its children. That suggests either whatever exporter was used to create the .GLTF file did some special work here or more likely the artist exported a different version of the file than the corresponding .blend file, which is why things don't match.

The moral of that is I should have probably downloaded the .blend file and exported myself. Before exporting I should have inspected all the major nodes and removed any transformations.

All these nodes at the top

OSG_Scene [Scene]
  │   pos: 0.000, 0.000, 0.000
  │   rot: 0.000, 0.000, 0.000
  │   scl: 1.000, 1.000, 1.000
  └─RootNode_(gltf_orientation_matrix) [Object3D]
    │   pos: 0.000, 0.000, 0.000
    │   rot: -1.571, 0.000, 0.000
    │   scl: 1.000, 1.000, 1.000
    └─RootNode_(model_correction_matrix) [Object3D]
      │   pos: 0.000, 0.000, 0.000
      │   rot: 0.000, 0.000, 0.000
      │   scl: 1.000, 1.000, 1.000
      └─4d4100bcb1c640e69699a87140df79d7fbx [Object3D]
        │   pos: 0.000, 0.000, 0.000
        │   rot: 1.571, 0.000, 0.000
        │   scl: 1.000, 1.000, 1.000

are also a waste.

Ideally the scene would consist of a single "root" node with no position, rotation, or scale. At runtime I could then pull all the children out of that root and parent them to the scene itself. There might be children of the root like "Cars" which would help me find all the cars but ideally it would also have no translation, rotation, or scale so I could re-parent the cars to the scene with the minimal amount of work.

In any case the quickest though maybe not the best fix is to just adjust the object we're using to view the curve.

Here's what I ended up with.

First I adjusted the position of the curve and found values that seemed to work. I then hid it.

{
  const points = curve.getPoints(250);
  const geometry = new THREE.BufferGeometry().setFromPoints(points);
  const material = new THREE.LineBasicMaterial({color: 0xff0000});
  curveObject = new THREE.Line(geometry, material);
+  curveObject.scale.set(100, 100, 100);
+  curveObject.position.y = -621;
+  curveObject.visible = false;
  material.depthTest = false;
  curveObject.renderOrder = 1;
  scene.add(curveObject);
}

Then I wrote code to move the cars along the curve. For each car we pick a position from 0 to 1 along the curve and compute a point in world space using the curveObject to transform the point. We then pick another point slightly further down the curve. We set the car's orientation using lookAt and put the car at the mid point between the 2 points.

// create 2 Vector3s we can use for path calculations
const carPosition = new THREE.Vector3();
const carTarget = new THREE.Vector3();

function render(time) {
  ...

-  for (const car of cars) {
-    car.rotation.y = time;
-  }

+  {
+    const pathTime = time * .01;
+    const targetOffset = 0.01;
+    cars.forEach((car, ndx) => {
+      // a number between 0 and 1 to evenly space the cars
+      const u = pathTime + ndx / cars.length;
+
+      // get the first point
+      curve.getPointAt(u % 1, carPosition);
+      carPosition.applyMatrix4(curveObject.matrixWorld);
+
+      // get a second point slightly further down the curve
+      curve.getPointAt((u + targetOffset) % 1, carTarget);
+      carTarget.applyMatrix4(curveObject.matrixWorld);
+
+      // put the car at the first point (temporarily)
+      car.position.copy(carPosition);
+      // point the car the second point
+      car.lookAt(carTarget);
+
+      // put the car between the 2 points
+      car.position.lerpVectors(carPosition, carTarget, 0.5);
+    });
+  }

and when I ran it I found out for each type of car, their height above their origins are not consistently set and so I needed to offset each one a little.

const loadedCars = root.getObjectByName('Cars');
const fixes = [
-  { prefix: 'Car_08', rot: [Math.PI * .5, 0, Math.PI * .5], },
-  { prefix: 'CAR_03', rot: [0, Math.PI, 0], },
-  { prefix: 'Car_04', rot: [0, Math.PI, 0], },
+  { prefix: 'Car_08', y: 0,  rot: [Math.PI * .5, 0, Math.PI * .5], },
+  { prefix: 'CAR_03', y: 33, rot: [0, Math.PI, 0], },
+  { prefix: 'Car_04', y: 40, rot: [0, Math.PI, 0], },
];

root.updateMatrixWorld();
for (const car of loadedCars.children.slice()) {
  const fix = fixes.find(fix => car.name.startsWith(fix.prefix));
  const obj = new THREE.Object3D();
  car.getWorldPosition(obj.position);
-  car.position.set(0, 0, 0);
+  car.position.set(0, fix.y, 0);
  car.rotation.set(...fix.rot);
  obj.add(car);
  scene.add(obj);
  cars.push(obj);
}

And the result.

Not bad for a few minutes work.

The last thing I wanted to do is turn on shadows.

To do this I grabbed all the GUI code from the DirectionalLight shadows example in the article on shadows and pasted it into our latest code.

Then, after loading, we need to turn on shadows on all the objects.

{
  const gltfLoader = new GLTFLoader();
  gltfLoader.load('resources/models/cartoon_lowpoly_small_city_free_pack/scene.gltf', (gltf) => {
    const root = gltf.scene;
    scene.add(root);

+    root.traverse((obj) => {
+      if (obj.castShadow !== undefined) {
+        obj.castShadow = true;
+        obj.receiveShadow = true;
+      }
+    });

I then spent nearly 4 hours trying to figure out why the shadow helpers were not working. It was because I forgot to enable shadows with

renderer.shadowMap.enabled = true;

😭

I then adjusted the values until our DirectionLight's shadow camera had a frustum that covered the entire scene. These are the settings I ended up with.

{
  const color = 0xFFFFFF;
  const intensity = 1;
  const light = new THREE.DirectionalLight(color, intensity);
+  light.castShadow = true;
*  light.position.set(-250, 800, -850);
*  light.target.position.set(-550, 40, -450);

+  light.shadow.bias = -0.004;
+  light.shadow.mapSize.width = 2048;
+  light.shadow.mapSize.height = 2048;

  scene.add(light);
  scene.add(light.target);
+  const cam = light.shadow.camera;
+  cam.near = 1;
+  cam.far = 2000;
+  cam.left = -1500;
+  cam.right = 1500;
+  cam.top = 1500;
+  cam.bottom = -1500;
...

and I set the background color to light blue.

const scene = new THREE.Scene();
-scene.background = new THREE.Color('black');
+scene.background = new THREE.Color('#DEFEFF');

And ... shadows

I hope walking through this project was useful and showed some good examples of working though some of the issues of loading a file with a scenegraph.

One interesting thing is that comparing the .blend file to the .gltf file, the .blend file has several lights but they are not lights after being loaded into the scene. A .GLTF file is just a JSON file so you can easily look inside. It consists of several arrays of things and each item in an array is referenced by index else where. While there are extensions in the works they point to a problem with almost all 3d formats. They can never cover every case.

There is always a need for more data. For example we manually exported a path for the cars to follow. Ideally that info could have been in the .GLTF file but to do that we'd need to write our own exporter and some how mark nodes for how we want them exported or use a naming scheme or something along those lines to get data from whatever tool we're using to create the data into our app.

All of that is left as an exercise to the reader.
